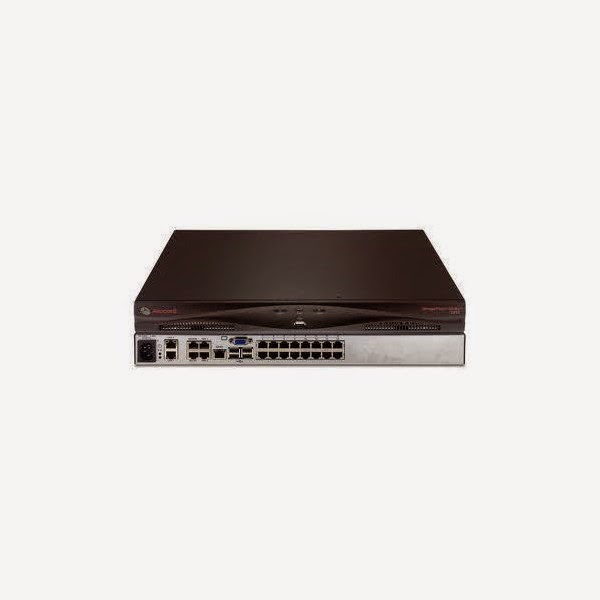

Avocent MPU108E 8 port 1 Digital KVM path, Single AC Power Supply

DC Gears

 Overview:-
The Merge Point Unity  switch is the next generation KVM over IP appliance replacing the award winning DSR product.

This industry leading appliance provides IT administrators a complete and secure, remote management solution to access and control servers, networking equipment and other devices found in data centers and branch offices.

Using both in-band and out-of-band tools together allows for a more fault-tolerant and complete, remote management solution. Remote, out-of-band connections complement traditional in-band/software tools to improve troubleshooting, shorten response times and help minimize unplanned downtime.

The Merge Point Unity appliances provide remote users the capabilities of a direct, physical connection to KVM, USB and serial ports of servers and other IT equipment from anywhere.

Features and Benefits

• Advanced Remote Management “ Provides secure and remote, out-of-band connections directly to the physical KVM, USB and serial ports to complement existing in-band software management tools

• Meet Service Level Agreements and Minimize Downtime “ Unified approach enables IT administrators a faster method to diagnose, reconfigure or restore equipment

• Virtual Media “ Enables USB media such as CD-ROMs, flash memory and external drives to be virtually attached to a remote server's USB port

• CAC/Smart Card Support “ Utilizing the virtual media capabilities remote or local users can map a USB-based smart card reader to the attached servers and authenticate using their smart cards

• Enhanced Serial Adapters “ Supports standard, remote SSH connections to the attached serial devices and includes electronic pin-out options for quick and easy connections to the console ports on Cisco network equipment

• Power Device Port “ Connect supported PDUs for integrated power control, measurement and reporting

• FIPS 140-2 Compliant Cryptography “ The FIPS mode of operation uses an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1051)

Read more about Avocent MPU108E 8 port 1 Digital KVM


ATEN KN4116v 16-Port KVM over IP Switch 1 local / 4 remote user access

ATEN KN4116v 16-Port KVM over IP Switch

Overview
Aten’s new generation of KVM over IP switches - KN series allows local and remote operators the ability to monitor and access their entire data center over the network using a web-based browser. In addition, they offer out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.

To help you manage and control an entire data center, our KVM over IP switches support blade servers and chassis. With powerful new features such as Power Association– KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches’ user interface.

KVM over IP switches now support the new Control Center Video Session Recorder (CCVSR) software. The CCVSR records all operations made on servers accessed through KVM over IP switches. Every operation and change from the BIOS level to logging in, from running software applications to configuring the operating system- is recorded and saved to a secure video file as evidence, without exception.

The Virtual Media function lets you map to storage media on USB, hard disk and DVD/CD drives located on remote servers – allowing administrators to conduct file transfers, install applications, run O.S. updates, or perform diagnostics across a network with ease.

Enhanced capabilities of KVM over IP switches also include: a Message Board, Panel Array Mode™, Mouse DynaSync™, and Adapter ID.

With dual on-board NICs and dual power supplies, the KVM over IP switches are built for reliability, to ensure 24/7 availability of remote access to all server room computers. The switch´s design features Green IT solutions that include four temperature sensors to regulate up to six fans – run at optimum speeds – throttling down and speeding up depending on room temperature, reducing data center operational costs through a more efficient way of maintaining energy.

With Aten KVM over IP switches IT administrators can manage their server rooms and data centers from practically anywhere – minimizing travel costs and MTTR (Mean Time to Repair) – ensuring the highest availability of data center services possible.

Features

Aten’s new generation of KVM over IP switches - KN series allows local and remote operators the ability to monitor and access their entire data center over the network using a web-based browser. In addition, they offer out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.

To help you manage and control an entire data center, our KVM over IP switches support blade servers and chassis. With powerful new features such as Power Association– KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches’ user interface.

KVM over IP switches now support the new Control Center Video Session Recorder (CCVSR) software. The CCVSR records all operations made on servers accessed through KVM over IP switches. Every operation and change from the BIOS level to logging in, from running software applications to configuring the operating system- is recorded and saved to a secure video file as evidence, without exception.

Hardware

• High port density – RJ-45 connectors for up to 16 ports in a 1U housing

• Four separate buses for remote KVM over IP access

• Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation

• Blade server support NEW!

• Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity

• Local console provides PS/2 and USB keyboard and mouse support

• Supports multiform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices

• Audio enabled

• Virtual Media support lets you map DVD-CD-ROMs and other storage media to a remote server

• Dual Power Supply

• High video resolution - up to 1600 x 1200 @ 60Hz - 32 bit color depth for the local console; up to 1600 x 1200 @ 60Hz with 24 bit color depth for remote sessions, at up to 50 m

• Monitor and control up to 16 computers on a single level, or control up to 256 computers in a two-level cascade*

* Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS88A, KH1508, KH1516, KH1508A, and KH1516A. Some KVM over IP Switches features may not be supported, depending on the functionality of the cascaded KVM switch.

Welcome To The KVM Switches Online @ DC Gears Blog

This blog is maintained by DC Gears (KVM Switches Online). We created this Blog to host an informal information source about KVM's, DCIM and related technology in a question and answer.
I will be addressing common questions that I receive so people like you can find the answers in a central location.

The topics will vary widely as we get asked questions from all across the spectrum. The questions will be as simple as "What would be the best type of KVM Switches / Extenders for this basic setup?" or as complex as "How can I control my servers in California from New York USA?" If you have a question and would like to see it answered on this blog send an email to sales@dcgears.com and we will reply to your email. If others can benefit from the answer we will post it here as well.


Thanks for checking out our Blog and if you have any feedback feel free to send it to us as well.




By
DC Gears (Data Center and Enterprise IT Gears)

http://www.dcgears.com

ATEN CE250A KVM Extender



ATEN CE250A KVM Extender

Overview

The CE250A KVM Extender is perfect for factory and construction sites, or any type of installation where the console needs to be in a conveniently accessible location, but you want the system equipment to reside in a safe place - away from dust, and harsh environmental influences.A key feature of the CE250A is built-in 8KV ESD protection and 2KV surge protection. It also features a custom ASIC that ensures the utmost in reliability and compatibility. It senses the distance to the computer and automatically adjusts the gain to compensate.

The CE250A KVM Extender provides the optimum means to access the remote computer, since it uses compact, inexpensive Cat 5e cable for a neater, more convenient, more reliable data transfer connection.

Features

The CE250A KVM Extender is perfect for factory and construction sites, or any type of installation where the console needs to be in a conveniently accessible location, but you want the system equipment to reside in a safe place - away from dust, and harsh environmental influences.

• Cat 5e cable to connect the Local and Remote Units - up to 150 m apart

• Dual console operation - control your system from both the local and remote PS/2 keyboard, mouse and monitor consoles
• Push button selection of the active console

• High resolution video -up to 1280 x 1024 @ 60 Hz

• Supports VGA, SVGA, and Multisync monitors - ocal monitor supports DDC; DDC2; DDC2B

• Supports Microsoft Intellimouse and the scrolling wheel on most mice

• Automatic gain control - automatically adjusts signal strength to compensate for distance

• Built-in 8KV ESD protection and 2KV surge protection

• Local unit takes its power from the computer - external power is only required when the power from the local computer/computers in the KVM installation is insufficient

• Rack Mountable
• Multiplatform support: OS Support:Windows 2000/XP/Vista and Linux.

Package Contents

• 1x CE250AL KVM Extender (Local Unit)
• 1x CE250AR KVM Extender (Remote Unit)
• 1x Custom KVM Cable (1.8 m)
• 1x Power Adapter
• 1x Mounting Kit
• 1x User Instructions
• 1x Grounding Information Card

By
DC Gears- Data Center And Enterprise IT Gears

ATEN CE700A USB KVM Extender @ DC Gears

Overview

The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).
The CE700A improves on previous designs by: 1) incorporating 8KV/15KV ESD protection and 2KV surge protection; 2) providing superior video quality - up to 1920 x 1200 resolution; 3) using inexpensive Cat 5e cable, instead of bulkier, more expensive, standard cables, for a much neater, more convenient, more reliable data transfer connection; 4) it is able to sense the distance to the system and automatically adjusts the gain accordingly; and 5) it features a custom ASIC to ensure the utmost in reliability and compatibility.

Features

The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).

• Cat 5e cable connects the Local and Remote Units - up to 150m apart
• Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
• Built-in ASIC for greater reliability and compatibility
• Auto Signal Compensation (ASC)
• USB Keyboard and USB Mouse Ports
• USB overcurrent detection and prevention
• Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes.
• Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
• Automatic gain control - adjusts signal strength to compensate for distance
• High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
• Supports VGA, SVGA, SXGA, UXGA, WUXGA and multisyncmonitors; local monitor supports DDC; DDC2; DDC2B
• Rack mountableEasy to install - no software required - connecting cables to the devices is all it takes
• Multiplatform support - Windows, Linux

Package Contents

• 1x CE700AL USB KVM Extender (Local Unit)
• 1x CE700AR USB KVM Extender (Remote Unit)
• 2x Power Adapters
• 1x USB KVM Cable (1.8m)
• 1x Mounting Kit
• 1x User Instructions

By
DC Gears - Data Center and Enterprise IT Gears

Avocent DSRIQ-SRL Server interface module for VT100 serial devices (requires UPD Module) @ DcGears

Overview

The Avocent DSRIQ Provides Exclusive CAT 5 technology

• Reduces cable volume for high density racks
• Provides analog connection from the Avocent DSR Series KVM switches to the servers

The Avocent DSRIQ Provides Exclusive Keep Alive technology

• Allows attached servers to continue network functions in the event of power failure to the switch
• Keyboard and mouse emulation processing powered from the keyboard connection on the servers

The Avocent DSRIQ IS DDC2B compliant

• Meets current VESA standards
• Provides optimal Digital Display resolution and video settings

@DcGears

Prefer this 10 things for Buy best KVM Switches

1. Digital vs. Front-End IP products—If you want to implement KVM over IP, you can choose between pure digital applications and front-end IP products. A pure digital implementation uses digital KVM switches and is a network-based management approach that allows administrators to gain BIOS-level access of the attached servers by communicating with the networked digital KVM switch. Front-End IP products are positioned at the console of existing analog switches and permit remote users to gain secure access to an existing KVM switch.

2. Support for Audio—Some KVM switches provide audio support. For example, the Rose Electronics UltraView Pro series will support audio for users and computers. In addition, Avocent AMX devices provide multi-user switches that support audio functionality.

3. Integration of Remote Power Management Functionality— By integrating a remote reboot device, administrators can cycle power to a server from a user station or through an internet browser from any location worldwide. Integrated power management solutions allow users to control KVM switching and remote reboot management from the same user interface. Enterprise-level solutions such as Server Technology’s line of remote power management products provide multiple options for 3-phase or 208 power.

4. Security/Authentication —Most KVM over IP devices allow an administrator to leverage existing authentication schema such as LDAP, Active Directory, RADIUS, or TACACS+.

5. Number of Users—Multi-User KVM switches range from smaller 4-user KVM switches able to handle dozens of servers, to integrated KVM switching systems capable of allowing hundreds of administrators to control thousands of servers.

6. CAT5 Switches—CAT5 KVM switches dramatically reduce desktop and server rack cable clutter and allow users and computers to be situated farther apart than they could be using standard KVM cables. CAT5 switches also scale much larger on both the user and system sides, providing additional flexibility as your organization grows.

7. Resolution and Performance—Resolutions vary by device; some KVM over IP switches provide a maximum of up to 1600X1200 at 60Hz over IP. If you have high resolution requirements, consider analog KVM switches, as they provide a higher resolution than digital KVM switches.

8. Support for Serial Devices—Some high-end KVM enterprise solutions provide support for serial devices (routers, headless Unix, etc.) Avocent and Raritan devices provide support for serial devices through the use of dongles. Rose Electronics’ devices provide serial support at the switch level and can support serial devices through coax cables.

9. Bandwidth—Bandwidth requirements will vary significantly depending on the graphic intensity of the application you are using. Most compression technologies use differentials, sending only the changes that appear on a screen to update the user screen.

10. Distance Requirements—The distance between a user and a server with KVM over IP is unlimited. The maximum distance between a user and server with a CAT5 KVM switch varies, with some higher-end analog CAT5 KVM switches allowing a user and a server to be up to 1,000 feet apart.

By,
DcGears - Data Center & Enterprise IT Gears

ATEN CE600 DVI KVM Extender @ DcGears

Overview

The CE600 is a DVI and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard, monitor, and mouse). Because it allows access to a computer system from a remote console, the CE600 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – away from the dust and dirt of the factory floor, or the harsh environmental infl uence of a construction site, for example. This allows users to deploy system equipment over large distances.

The CE600 users one Cat 5e cable (DVI Single Link) to support up to 1920 x 1080 video resolution.

Features

The CE600 is a DVI and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard, monitor, and mouse). Because it allows access to a computer system from a remote console, the CE600 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – away from the dust and dirt of the factory floor, or the harsh environmental infl uence of a construction site, for example. This allows users to deploy system equipment over large distances.

• Local and Remote Units connect at distances up to 60 m using Cat 5e cable
• Allows access to a computer or KVM installation from a remote console (up to 60 m)
• Features ATEN technology that allows A/V transmission over one cat 5e cable
• The 2nd Cat 5e cable is used for HDCP, RS-232, and microphone signals
• Manual compensation control to adjust signal strength in order to compensate for distance
• RS-232 serial ports – connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate 115200 bps)
• Audio Enabled – supports stereo speakers and microphone
• Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
• supports Wide Screen formats
• Superior video quality of up to 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m – get an excellent, crisp image on your screen over long distance transmissions
• Hot pluggable
• Rack mountable
• Easy to install – no software required – connecting cables to the devices is all it takes
• Firmware upgrade

Package Contents

• 1x CE600L DVI KVM Extender (Local Unit)
• 1x CE600R DVI KVM Extender (Remote Unit)
• 1x 1.8 m USB DVI-D Single Link KVM Cable Set
• 2x Power Adapters
• 1x Mounting Kit
• 1x User Instructions
